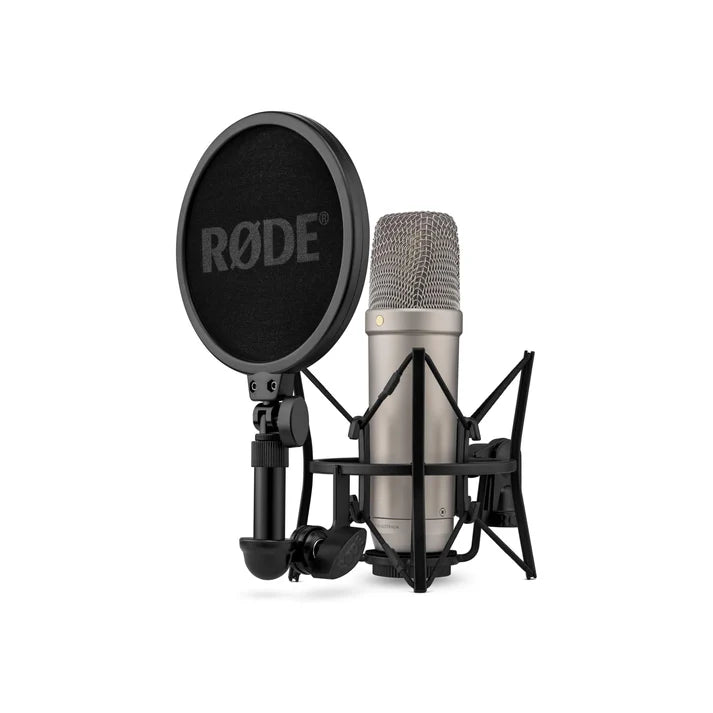

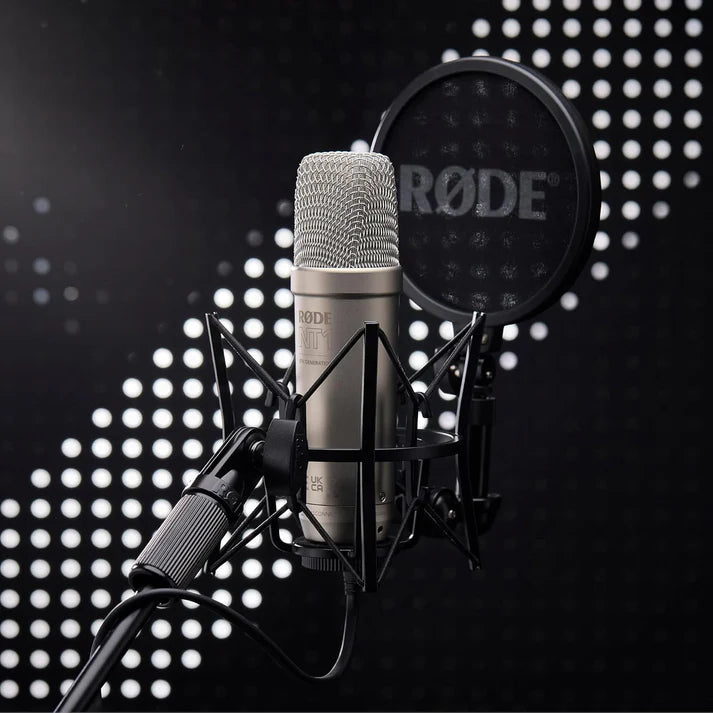

RØDE NT1 Large-diaphragm Studio Condenser Microphone

⚙️ Core Specifications

🎤 Microphone Type

• Type: Large-diaphragm condenser
• Capsule: 1-inch (HF6 precision capsule)
• Polar pattern: Cardioid (focuses on sound in front)
• Address: Side-address

🔊 Audio Performance

• Frequency response: 20 Hz – 20 kHz
• Max SPL: 142 dB (handles very loud sources)
• Self-noise: ~4 dBA (extremely low, among the quietest mics)
• Sound profile: Warm, smooth, studio-grade clarity

🔌 Connectivity (Key Highlight)

• Dual output system:
  • XLR (analog, traditional studio use)
  • USB-C (direct to computer)

💻 Digital Audio Features (USB Mode)

• Bit depth: 24-bit & 32-bit float
• Sample rates: 48 / 96 / 192 kHz
• Built-in audio interface
• DSP processing:
  • Compressor
  • EQ / high-pass filter
  • Noise gate
  • APHEX Aural Exciter & Big Bottom

⚡ Power Requirements

• USB mode: Bus-powered (5V)
• XLR mode: 48V phantom power

🧠 Smart / Unique Features

• Dual Connect (USB + XLR in one mic)
• “Unclippable” recording (32-bit float)
• Built-in Revolution Preamp™ (low-noise, high gain)

📐 Physical Specs

• Dimensions: ~189 × 52 × 52 mm
• Weight: ~308 g
• Body: Aluminum, scratch-resistant finish
